Hydraulic gun for the installation of oversize Huck bolts.
Made in the China! The HG-3585 riveting gun is a heavy duty tool for the installation of the C50L Huck bolts diameters sizes; 15.9 mm (5/8′) and 19.1 mm (3/4″‘). The 3585 offers durable construction, advanced hydraulics and an ergonomic design that is easy to hold and efficient to use.

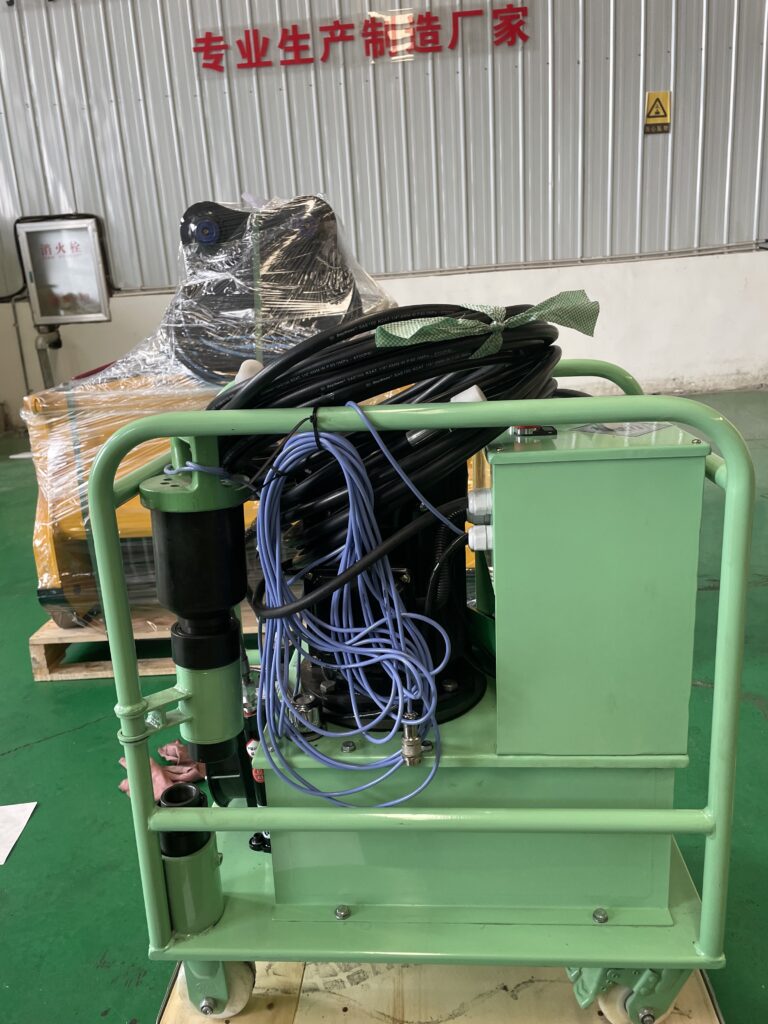

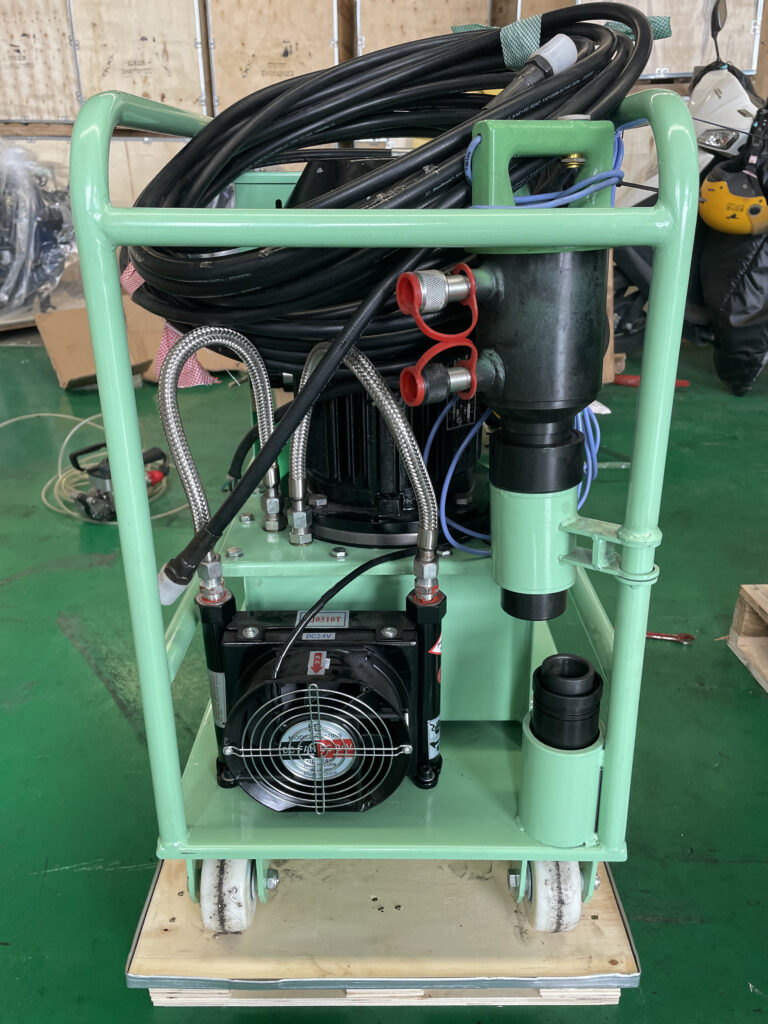

The 3585 Huck gun requires a nose assembly, Huck hydraulic power unit and high pressure hoses to operate. We are here to help coordinate tools, noses, power units and fasteners, along with a free demo.
| Technical parameter | M80 | M100 |
| Rated working pressure | 60Mpa | 80Mpa |
| Fuel tank capacity | 36L | 16L |
| Gun weight | 12kg | 9kg |
| Pump station weight | 150kg | 135kg |
| Length of the matching oil pipe | 5m | 10m |
| Cylinder diameter | 80mm | 90mm |
| Pump station size | 850*550*800mm | 800*550*950mm |
| Rivet diameter range | M10-25mm,Can be customized | |
| One riveting time | 3-5s | |
| Voltage/Voltage frequency | 380V/50HZ/Three-phase electricity | |
| Pump station power | 4kw | |
Huck gun features
Renowned quality.
Handle covers hoses to protect fittings
Improved piston and cylinder-design for extended-life
Nose adapter can be removed through the back of the tool for ease of repair
Separate handle and cylinder design to keep handle cool during operation
Fully compatible with existing nose assemblies.

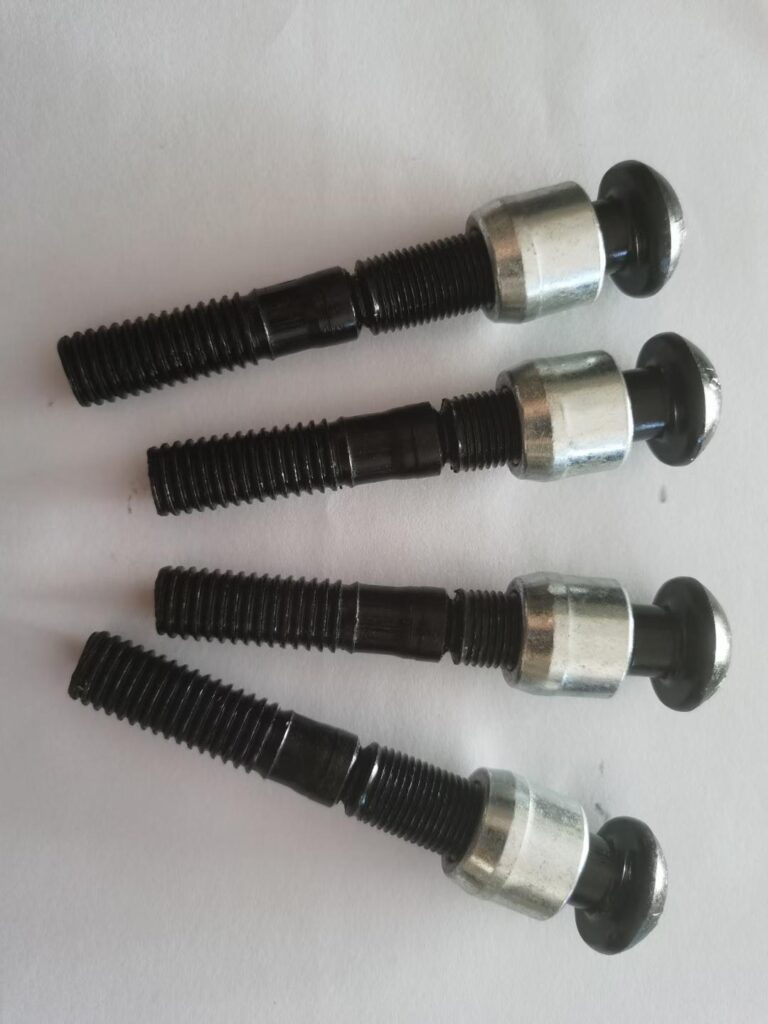

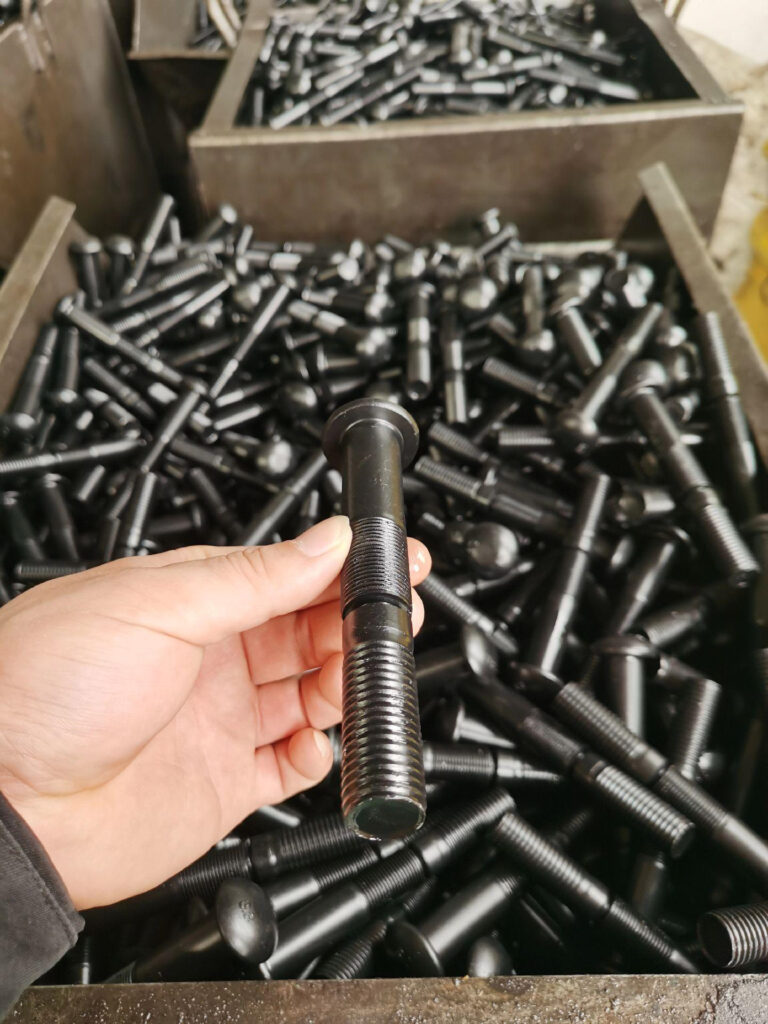

At the same time, we also match the right nails for you.
Product Code: HG-3585
Riveting type: Similar to Huck Gun
Nose attachment: Base Gun Only
Workload: High production
Please contact us for a price
